On active civil engineering projects and commercial industrial perimeters, temporary fencing is often ordered under a generic line item without much thought given to mesh geometry. Site foremen regularly find that rolls with identical plastic material behave entirely differently once unrolled across posts. One crew might watch an oval-aperture barrier net ripple and scallop in high crosswinds, while an adjacent crew using diamond-patterned mesh maintains a crisp, upright barrier line across the entire quarter-mile work zone. The difference rarely comes down to plastic grade alone-it is rooted in the structural mechanics of diagonal rib orientation.
Standard oval safety barriers are manufactured with horizontal and vertical polymer strands that meet at orthogonal junctions. This rectangular grid pattern delivers excellent visual warning mass and rapid unrolling for basic trench excavations, utility repairs, and short-term traffic diversions. However, because orthogonal joints have little inherent resistance against diagonal shear forces, horizontal strands tend to bow downwards when wind hits the fence perpendicularly, requiring frequent re-tensioning along the top support line.
Extruded orange plastic diamond safety fence installed along an active civil construction perimeter, maintaining structural uprightness across wide post spacing.
Triangular Node Geometry and Inherent Torsional Rigidity
Extruded diamond mesh takes a completely different mechanical approach. Rather than relying on horizontal and vertical strands, continuous rotary extrusion molds overlapping diagonal polymer ribs that intersect at acute angles. These crisscrossing diagonal strands form an interconnected matrix of structural triangles across the entire roll face.
In structural engineering, the triangle is the only geometric shape that cannot deform without altering the length of its sides. When crosswinds push against an extruded diamond mesh, lateral forces distribute evenly into tension and compression along the opposing diagonal strands. This self-bracing action prevents the top edge from curling or scalloping, allowing contractors to maintain a neat visual perimeter even across windy highway corridors and exposed coastal worksites.

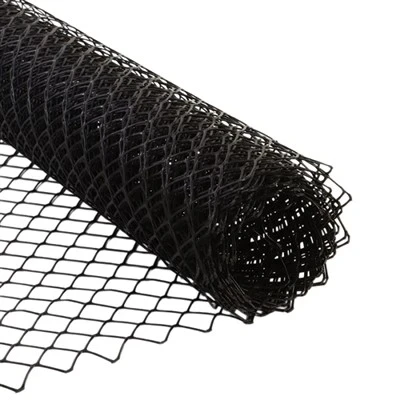

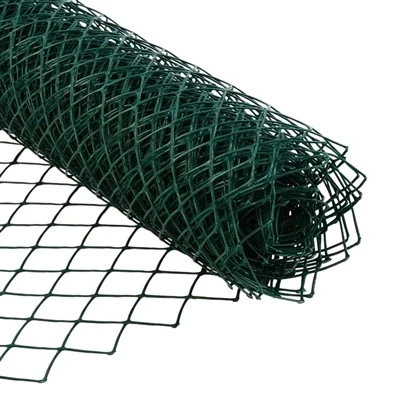

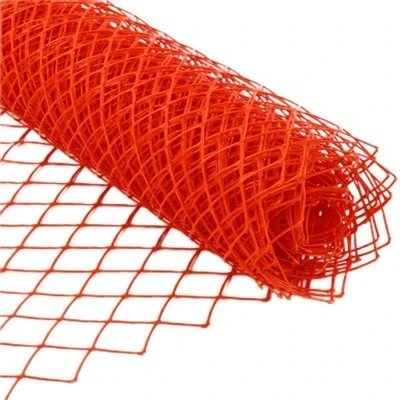

Master rolls of heavy-duty extruded diamond mesh featuring continuous diagonal ribs and high tensile node joints.
Airflow Permeability and Dynamic Wind Drag
Wind load management on a construction site is not about creating an impenetrable solid barrier-it is about aerodynamic moderation. When strong gusts strike a dense plastic sheet, high surface drag exerts massive overturning torque on support stakes, often bending steel T-posts or snapping wooden stakes right at the soil line.
Extruded diamond mesh maintains a high open-area ratio while keeping individual strand walls thick and substantial. Airflow filters smoothly through the diagonal diamond apertures, dissipating kinetic energy without generating excessive turbulence or high backpressure. This balanced permeability makes diamond mesh particularly effective along mountain highway expansion projects, bridge repair zones, and open agricultural windbreak corridors where maintaining boundary integrity during seasonal gales is essential.
Temporary plastic diamond safety netting deployed for equipment zone segregation and utility pit demarcation.
Material Purity and Job-Site Handling
At Shaoxing Yongte Plastics, our diamond fence mesh is extruded exclusively from 100% virgin high-density polyethylene. Virgin polymer feedstock ensures that every strand maintains uniform wall thickness and smooth, non-abrasive edges. Workers handling rolls on brisk mornings can unroll, position, and fasten the netting without catching rough burrs on heavy leather work gloves.
Because pure virgin high-density polyethylene does not absorb moisture, mud and wet concrete slurry wash off cleanly with a standard pressure washdown nozzle between project phases. When a job wraps up, crews can detach the cable ties, roll the mesh back onto its coreless center, and transport it directly to the next job site without strand delamination or structural breakdown.

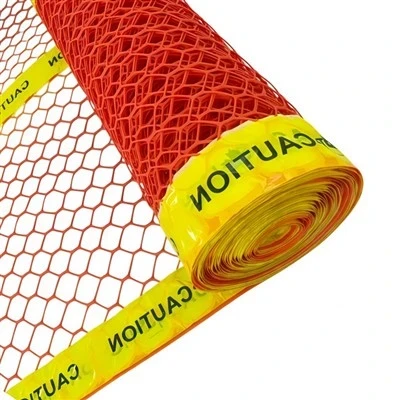

High-visibility diamond mesh warning net with integrated caution tape for high-risk industrial utility zones.
Specifications and Container Freight Packout
To serve diverse regional procurement habits, our manufacturing lines supply diamond fence mesh across a comprehensive range from lightweight boundary rolls up to heavy industrial barrier netting, with roll widths of 1.0 meter, 1.2 meters, 1.5 meters, and 1.8 meters, alongside standard 4-foot configurations. Standard roll lengths extend from 15 meters up to 100 meters, packaged as tight self-wound rolls sealed within heavy-duty protective polyethylene film.
For international importers and commercial distributors, freight efficiency per square meter directly impacts landed wholesale margins. Depending on chosen roll width, length, and grammage, a standard 40-foot high-cube container accommodates between 1,000 rolls and 10,000 rolls, supporting both bulk floor-loading and palletized container configurations. Our engineering team at Shaoxing Yongte Plastics is always ready to assist commercial buyers with tailored roll specifications, custom masterbatch coloration, and comprehensive export logistics planning.
